產品介紹
產品名稱 /
ESD PEEK-ELS抗靜電,Conductive導電等級
產品介紹 /
ESD PEEK-ELS抗靜電, Conductive導電等級, Victrex, 阻抗值10E2-10E5, Black黑色
Defined electrical conductivity, carbon fiber reinforced providing high strength, with approvals for use in semi-conductor technology and the electronics industry.
抗靜電(導電型)PEEK，體積阻抗為10E3Ω，加入碳素纖維強化，強度更高，適合用於半導體和電子產業
PEEK can be used at very high temperatures (+260℃) and it shows an extraordinary mechanical strength, toughness, hardness, flexural strength, torsional strength. PEEK exhibits excellent chemical resistance, very good dielectric properties up to +260℃ and a very good resistance to all kind of radiation. Importantly it is self-extinguishing according to UL94.
聚醚醚酮材料的連續使用溫度極高(約+260℃)，還具有極高的剛性和硬度，以及獨有的高拉抗強度及抗疲勞強度。另外其耐熱不形變與化學穩定性俱佳。當溫度到達260℃之前該材料都具有極好的介電性能，並能抵抗能量射線照射(紫外線照射只會使材料輕微泛黃)。

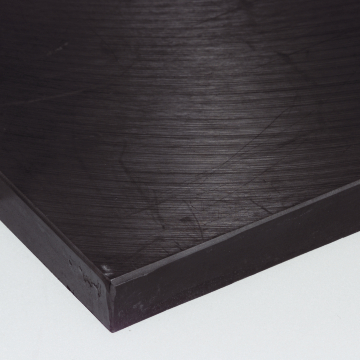

產品種類:ESD PEEK-ELS抗靜電板
好料搜尋:ESDPEEKELS,抗靜電PEEK,工業塑膠,高階工程塑膠,抗靜電材料,防靜電,耐高溫材料,抗化學
產品特性
★依UL94標準PEEK可自行熄滅
★ESD(ElectroStatic Discharge)Surface Resistivity抗靜電材料的區分方式:(Ω)
10E9-10E12 Anti-Static (AS) 動/靜態抗靜電型
10E6-10E9 Static Dissipative (SD) 靜電消散型
10E3-10E6 Conductive (CN) 導電型
The Physical data contained in this table are typical values. They are obtained on the test specimens under specific conditions and represent average values of a large number of tests. The result obtained on this test specimen cannot be applied to finished parts without reservations, as behavior is influenced by processing and shaping. Reproduction only with our declared permission
材質特性資料僅可作為選擇材料之參考，不可做為實際產品使用之依據，此特性資料提供不附帶任何保固和其他用途。
